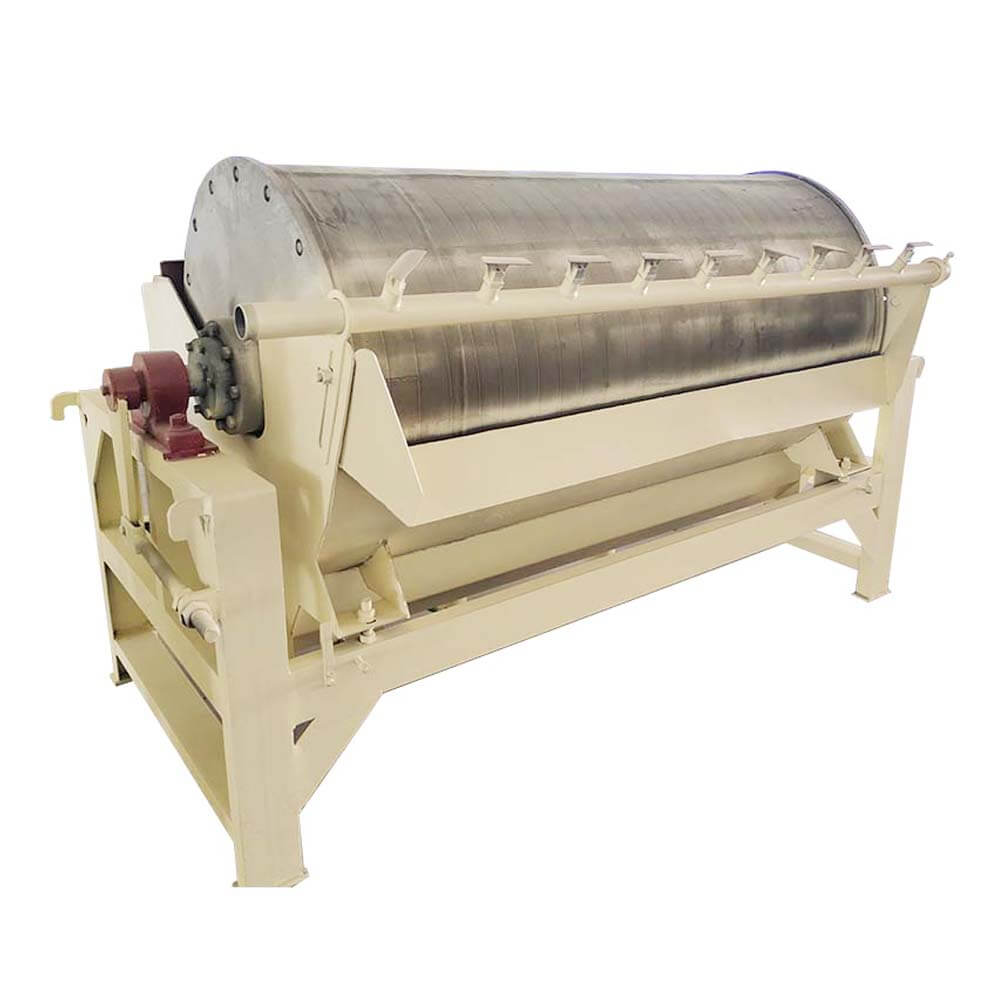

Wet Drum Magnetic Separator
Capacity: 0.5-180 TPH
Feeding Size:0-3mm
Process Material: Magnetite, pyrrhotite, roast ore and ilmenite, and other materials with particle sizes less than 3mm. wet drum magnetic separator is also used for iron removal of materials such as coal, non-metallic minerals, and building materials.
Wet Drum Magnetic Separator Overview
The wet drum magnetic separator is a commonly used iron ore processing equipment (iron ore magnetic separator) and manganese ore equipment (manganese ore magnetic separator) and is a mainstream strong magnetic separator ore dressing equipment. It is suitable for wet magnetic separation of magnetite, pyrrhotite, roasting ore, ilmenite, and other materials with a particle size of 3mm or less. It is also used for iron removal of coal, non-metallic minerals, building materials, etc.
Wet Drum Magnetic Separators Types
According to the needs of users, it can provide magnetic separation of many different surface strengths such as downstream, semi-reverse flow, and counterflow.
Magnetic Separators for Sale
As a professional magnetic separator supplier, we supply types of magnetic separators, includes Dry Drum Magnetic Separator, Wet magnetic separator, Roller Electrostatic Separator, ARC type electrostatic separator, Three-disc dry magnetic separator, High-Intensity Magnetic Separator, magnetic separator laboratory use equipment. Magnetic separator design service is available.
Advantages
Wet Drum Magnetic Separator Advantages
- Simple structure
- Big capacity
- Simple operation
- Easy maintenance
Structures & Working Principle
Wet Drum Magnetic Separator Working Principle
During the processing, the non-magnetic minerals in these minerals will fall off during this continuous turning process, and those that are adsorbed on the surface of the cylinder of the magnetic separator are the concentrates left by the equipment while producing. Due to the magnetic treatment of such a cylinder, these concentrates reach the weakest ends of the cylindrical magnetic force as the cylinder flips, and at the same time, under the action of the water flow discharged from the unloading water. Then the concentrate tank of the concentrate, and other minerals left after treatment are discharged to the outside of the cylinder in the north. Such a mineral with a small amount of use is tailings.
Technical Parameters
| Model | Shell diameter(mm) | Shell length(mm) | Shell rotation speed(r/min) | Feeding size(mm) | Processing capacity(t/h) | Power(kw) |
| CTB4060 | 400 | 600 | 48 | 2-0 | 0.5-1 | 1.1 |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
