Gold Dredge Equipment
Name: Gold mining dredges, gold dredges, gold mining ships, gold dredging equipment.
Scope of Application: Riverbends, banks of rivers and streams, river mouths, the base of waterfalls, reservoirs, and shallow sea basins.
Main Gold Dredges: Small gold dredges (small suction machines) and larger gold dredges (bucketline dredges).
Gold dredger is a kind of water-based joint plant integrating mining operation and ore dressing operation, which is mainly used for mining alluvial gold ore. The gold dredger is a kind of gold mining ship and a kind of deformed product of sand dredger, and the gold dredger is also called a gold mining ship in some places. Raise the sand outlet of the sand pumping ship to leave the space for adding gold mining equipment, laying mineral processing equipment, and so on to become a gold dredger. It is suitable for gold mining operations in rivers, reservoirs, and shallow sea basins. In addition to being used as gold processing, sand pumping, and gold dredge can also be used as platinum and diamond washing ships.
Classification of gold dredge
From the beneficiation process, the gold dredge is divided into a fixed sluice box, stirring/wriggling sluice box, vibrating gold sluice, automatic discharge sluice box, water jacket centrifuge, jig separator, and other types.
Small Gold Dredger
Bucket Chain Gold Dredger
Gold Dredger With Centrifuge
Alluvial Gold Dredger With Chute
Gold Dredging Equipment For Sale
Bucket Chain Dredger
Capacity:100-300 tph
Dredging Depth: 5-30 meters
Recovery Rate: 98%
Powering System: Diesel generator
- Suitable for harder riverbeds
- Need matching transport ship
- Used in large scale mining
- Extraction and recovery of gold from riverbeds
- Self-digging, self-selecting, self-discharging tailings integrated hydro-excavation and beneficiation platforms
Mini Gold Dredger
Work Capacity: 5-13 m3/h
Dredging Depth: 0.5-1.5 m
Float Material: High strength and lightweight plastic.
Powering System: Diesel generator
- Apply in ponds, lakes, and rivers with flat riverbeds
- Low cost and easy transportation
- Ideal for personal and small-scale mining
- Environmental protection and economy
- Siphon type gold dredge

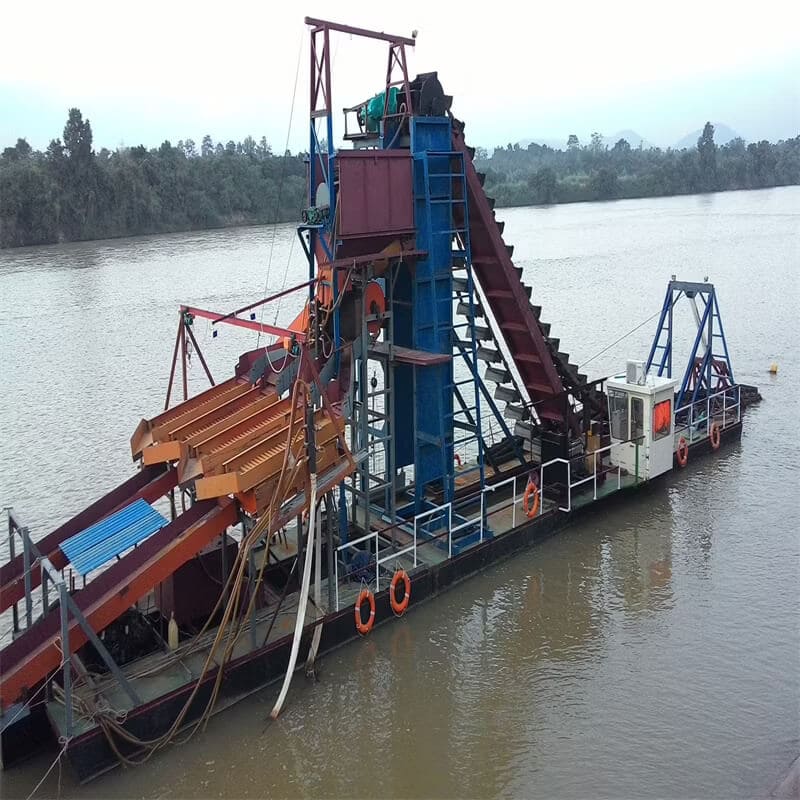

Bucket Chain/Ladder Gold Dredger
The bucket chain gold dredger is a highly efficient mining equipment used for gold extraction from riverbeds, lakes, and shallow sea areas. It uses a continuous chain of buckets to scoop up sediment from the bottom, then processed onboard to separate gold from the waste material. The bucket ladder gold dredger has high recovery efficiency and is designed to recover fine gold particles and larger nuggets. It can handle varying capacities, from small-scale operations to industrial setups.
Advantages
- Efficient for large-scale dredging and gold recovery.
- Suitable for alluvial gold mining in shallow waters.
- The continuous operation ensures higher productivity.
- Can operate in remote locations with appropriate power sources.
Applications
- Alluvial gold mining in rivers and streams.
- Gold recovery from sediments in shallow seas or lakes.
- Cleanup operations in tailing ponds or old mining sites.
Bucket Chain/Ladder Gold Mining Dredger Structure
The bucket gold dredger includes several basic systems such as an excavation system, mining ore dressing, water supply system, waste and tailings discharge system, deck machinery, hull, power system, and so on.
● Chain Bucket System
Name: Chain and bucket system
Chain material: forged high-manganese steel
Bucket material: High-Manganese steel with forged lips, anti-tearing
Bucket size: depending on the dredger processing capacity
Capacity: 50-300 t/h
Power: 150-300 kw
Dredging depth: 5-20m
Mesh opening size: 6-20 mm
Maximum dredging size: 300 m
Function: to dig the materials from pond/river/sea bottom
● Clay Processing System
Name: Clay Scrubber
Size (mm): φ1200*3000 or according to processing capacity
Remark: with inside water spray pipes
Function: to break off hard clays to increase gold recovery
● Screening System
Name: Gold Trommel Screen
Size (mm): φ1500*3500 or according to processing capacity
Remark: 2 layer trommel screen
Function: For washing, screening and separating the minerals
Water Spray Pipes: On both sides of the trommel
Mesh Size: 12mm and 6mm or according to clients requirement
● Coarse Gold Recovery System
Name: Vibrating Sluice + Sluice Box
Vibrating Sluice Type: Hydraulic type
Size: 1m*6m
Recovery Rate: 99%
Function: For coarse gold recovery
● Fine Size Gold Recovery System
Name: Gold Centrifugal Concentrator
Processing Capacity: 0.5-60 t/h
Feeding Size: 0-6 mm
Feeding Density: <50%
Power: 1.1-18.5 kW
Recovery Rate: 99%
Function: For fine size dust gold recovery (-6mm)
Name: Gold shaker table
Capacity: 0-2 T/H
Feeding Size: 0-2mm
Feeding Density: 15%-30%
Power: 2.2Kw
Function: To further process the concentrates from the sluice and/or concentrators

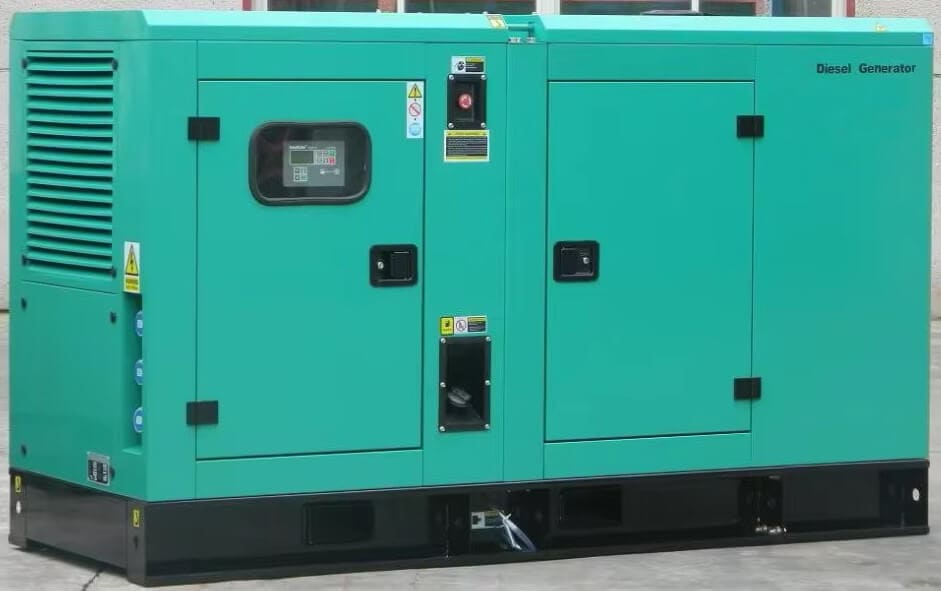

● Powering System
Name: Diesel Generator
Power: 100Kw-350Kw
Function: Supplying power to all the systems

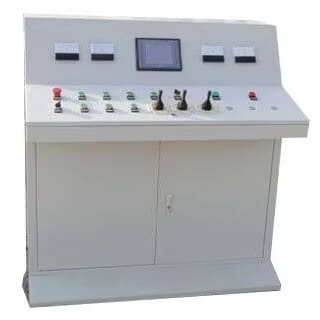

● Control System
Name: Control desk
Type: buttons type
Control person: 1 person
Funciton: to control all the equipment in the dredger
● Gold Refining System
Name: Gold Smelting Furnace
Capacity: 1-8 kg
Moulds: 100g, 200g, 500g, 1000g
Function: To smelting the gold sand and make into final product of gold bars
Bucket Chain Gold Dredger Technical Parameters
| Model | BCD-100 | BCD-200 | BCD-300 |
| Dredger Depth | 5-30 meters | 5-30 meters | 5-30 meters |
| Capacity (t/h) | 100 | 200 | 300 |
| Power ( kW) | 150 | 200 | 300 |
| Bucket Size (cubic) | 0.04 | 0.04 | 0.12 |
| Clay Scrubber (mm) | Ф1000*2000 | Ф1200*3000 | Ф1500*3000 |
| Trommel Screen (mm) | Ф1200*3000 | Ф1500*3500 | Ф1800*4000 |
| Sluice Box | 2 sets | 3 sets | 4 sets |
| Water Supply (m3) | 120 | 240 | 370 |
| Concentrators | 1 | 2 | 4 |
| Recovery Rate | 98% | 98% | 98% |
Mini Gold Dredger
The mini gold dredger is a professional portable gold mining equipment that is specially designed according to the complex riverbed conditions. The mobile gold dredge machine is equipped with a gold sluice box with gold carpet or grass for a high recovery rate. Powered by a famous engine with pump, the float framework is made up of a stainless steel structure, float body is made up of high-strength and lightweight plastic. There are advantages that smaller in size and easy to transport, so it is widely used for working gold mining in the mini river channel. The small gold dredger is a professional portable gold mining machine that is specially designed according to the complex riverbed conditions. This gold mining dredge equipment is flexible to most kinds of geologic structures and has a lot of obvious advantages. During the portable gold mining equipment working process, on the water, the sand and mud can be sucked up from the river bottom through the mud pump, and then delivered into the chute, after the separation of the sorting sieve, large stones flowed back to the river, the sand mud with gold grains was stuck in the gold carpet.
Advantages
- Equip Honda engine, low oil consumption;
- HDPE floater, long working life, easy to keep the hull steady;
- All the castings are galvanized and,h ave strong corrosion resistance;
- High-quality aviation grade aluminum, lightweight and big strength;
- The weight of all models is light and easy to transport.
Mini Gold Mining Dredger Technical Parameters
| Model | QFT3-2 | QFT4-3 | QFT5-3 |
| Dimension | 2300*1500*1000mm | 2500*1500*1000mm | 2500*1500*1000mm |
| Diesel | |||
| Model | RZ170F | RZ178F | RZ186FA |
| Power | 5hp | 7hp | 12hp |
| Rotate speed | 3600rpm | 3600rpm | 3600rpm |
| Fuel consumption | ≤284g/Kw·h | ≤283g/Kw·h | ≤280g/Kw·h |
| Fuel capacity | 2.65L | 3.3L | 5.5L |
| Pump | 1 set | 1 set | 2 sets |
| Dimension(L*W*H) | 550*450*450mm | 550*470*450mm | 550*500*480mm |
| Pump diameter | 50mm(2inch) | 80mm(3inch) | 100mm(4inch) |
| Water flow | 33m³/h | 60m³/h | 80m³/h |
| Head | 30m | 30m | 25m |
| Dredging depth | 0.5-0.8 m | 0.5-0.8 m | 1.5 m |
| Work capacity | 5m³/h | 8m³/h | 13m³/h |
| Gold Chute | |||
| Dimension(L*W) | 400*1500mm | 500*1700mm | 500*1700mm |
| With gold felt | With gold felt | With gold felt | |
| Float | |||
| Dimension(L*W*H) | 1600*395*370 | 1600*395*370 | 1600*395*370 |
| Suction pipe | 3inch | 4inch | 5inch |
