Trinidad 100 TPH Granite Crushing Plant

Trinidad 100 TPH Granite Crushing Plant

JXSC has provided a successful 100TPH granite crushing plant in Trinidad. We design the crushing process plant flowchart & plant layout drawing according to stone conditions and offer a complete set of plant machines.

Introduction

Minerals: Granite
Capacity: 100 TPH
Process: Feeding -> Crushing -> Secondary Crushing -> Screening
Final Product Size Requirements: 0-5 mm, 5-10mm, and 10-20mm.

Solutions & Process

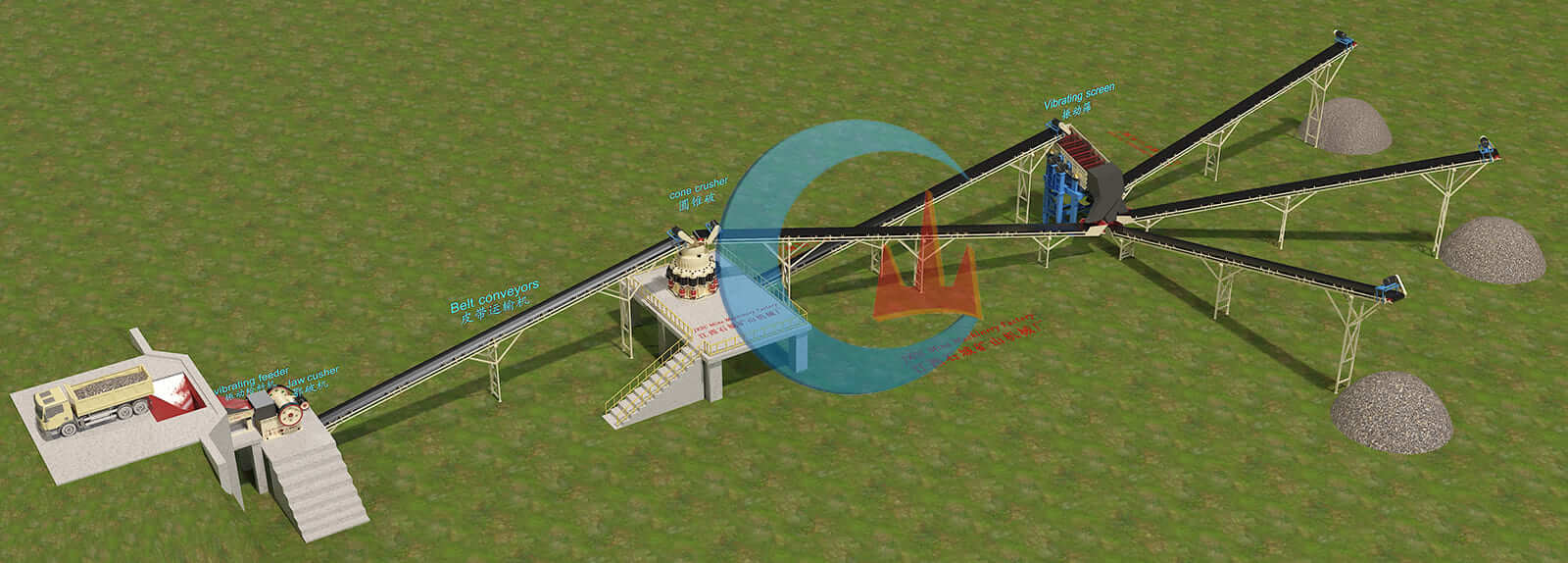

Granite Crushing Plant

This setup is a granite-crushing plant.

  • The raw material will be sent to a feeding hopper. Raw material sizes can be around 0-500mm. Then the materials go to a vibrating feeder which can work with a 500mm grizzly bar to screen the more than 500mm raw ores. The material less than 500mm will be sent to the jaw crusher to crush to be smaller, around 60-150mm.

  • Then the materials crushed by the jaw crusher will be sent to a cone crusher crushed to 0-40mm by one belt conveyor. (We generally suggest matching one iron remover above this belt conveyor to remove any iron in the raw material.) We recommend using a cone crusher for a big-capacity plant as the secondary crushing part, like in a situation of more than 50 tons. The crushed materials from the cone crusher will be sent to a vibrating screen with three layers of screen, the mesh size is 5mm, 10mm, and 20mm.

  • The sizes of more than 20mm will be sent back to the primary jaw crusher to crush again. A vibrating screen will screen out 3 final products and convey them to different stockpiles.

Equipment Lists

  • Vibrating feeder
  • Jaw crusher
  • Cone crusher
  • Vibrating screen
  • Belt conveyors
